our current range of second-hand-machines

Year of Construction:

• 1994

Machine No.:

• 13541

Material:

• Drum: stainless steel 1.4541, polished

Description:

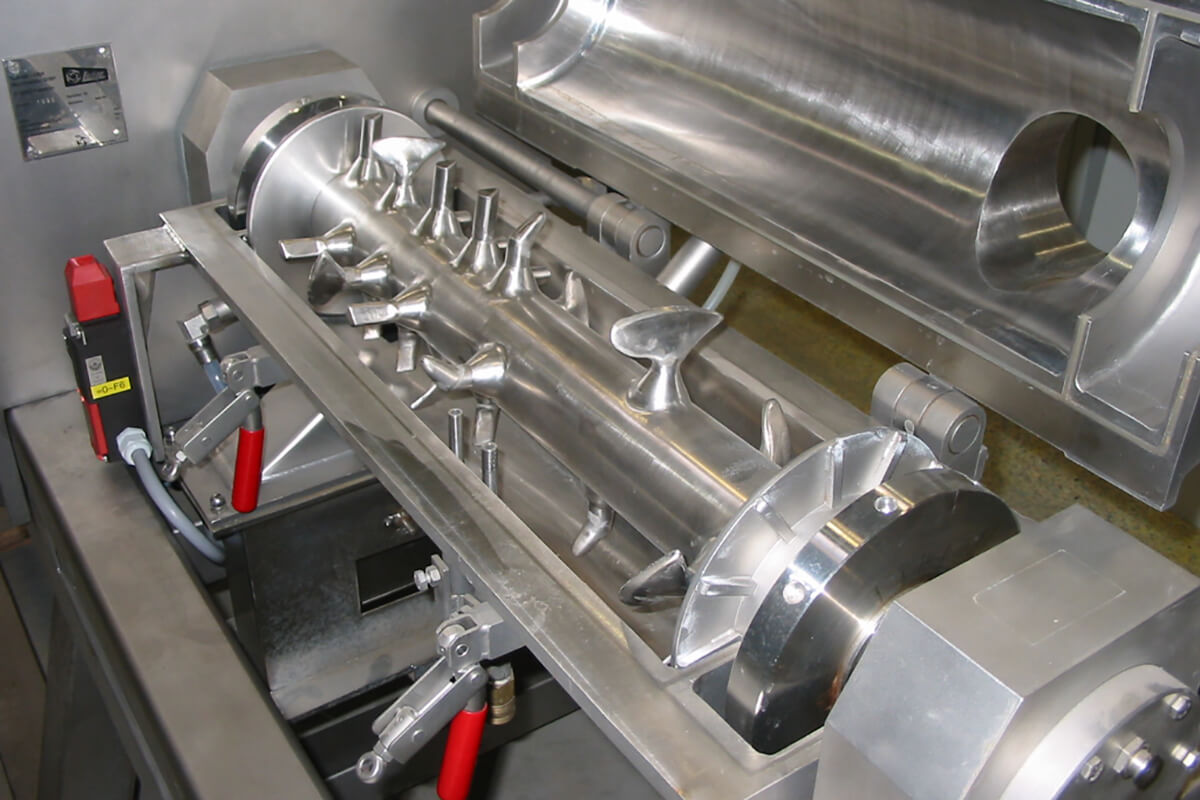

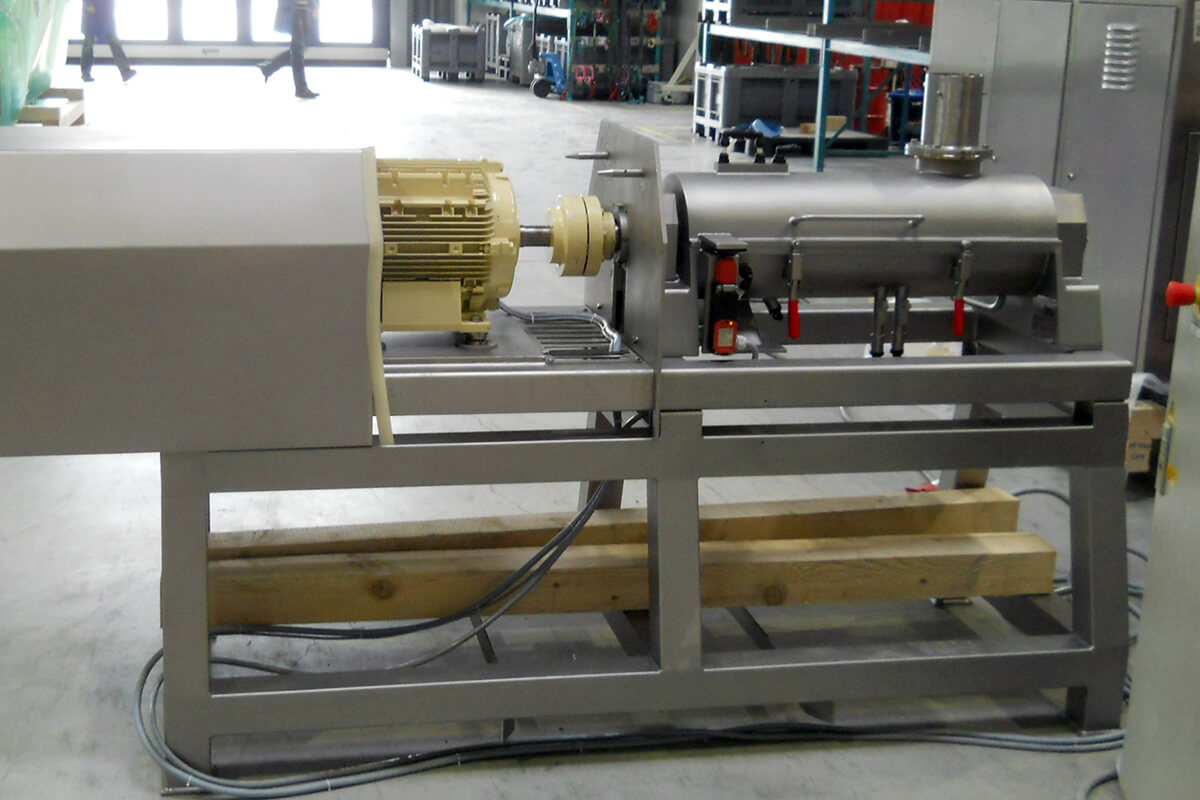

• Conti mixer/recycler with new paint according to RAL 5018
• Product addition is controlled continuously
• Drum material 1.4541, polished

Power:

• 11 KW, 3.000 rpm, 380 V/50 Hz
• FC-controllable, 1.300 – 2.600 rpm

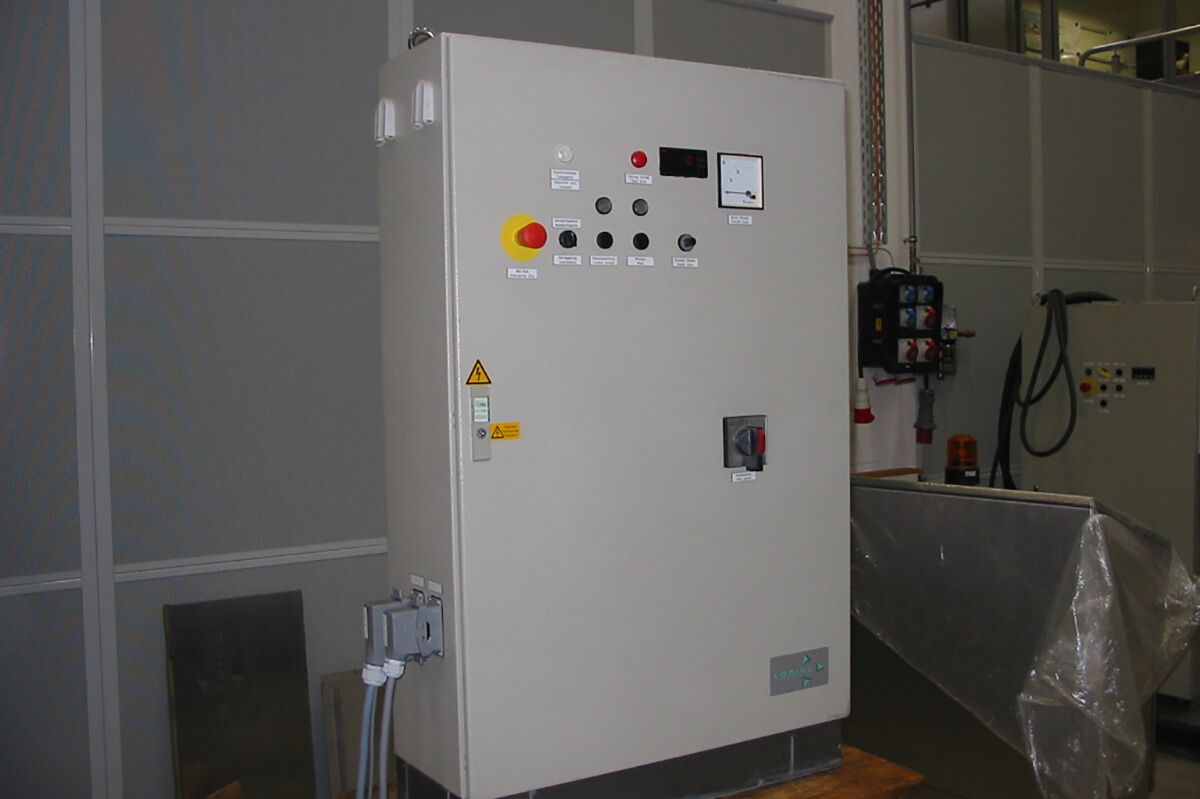

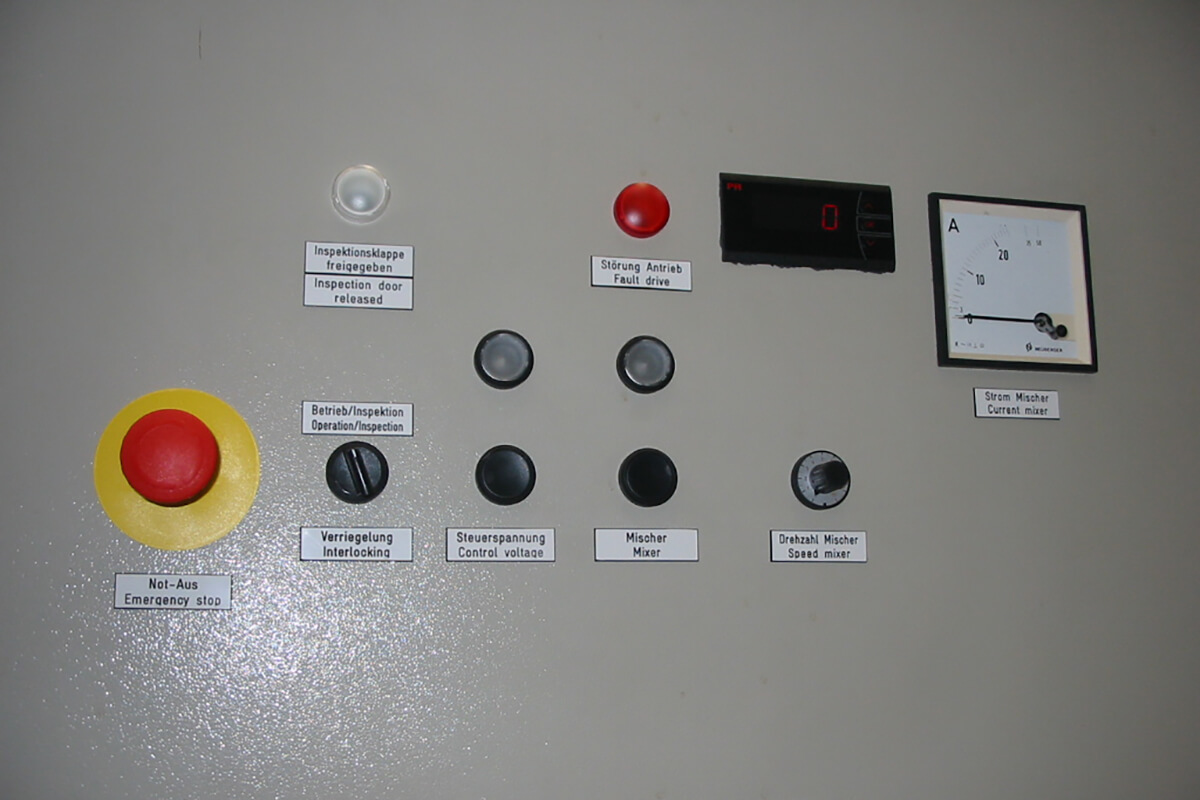

• With a completely new electrical switch cabinet

Equipment:

• With jacket, 1,5 bar/95 °C
• Mech. outlet/inlet nozzle DN 105
• Equipped with new safety devices/guards

Remarks:

• Machine is completely wired, mounted on a support structure
• Shaft sealing using centrifugal disc
• 2x liquid addition from outside in mixing vessel

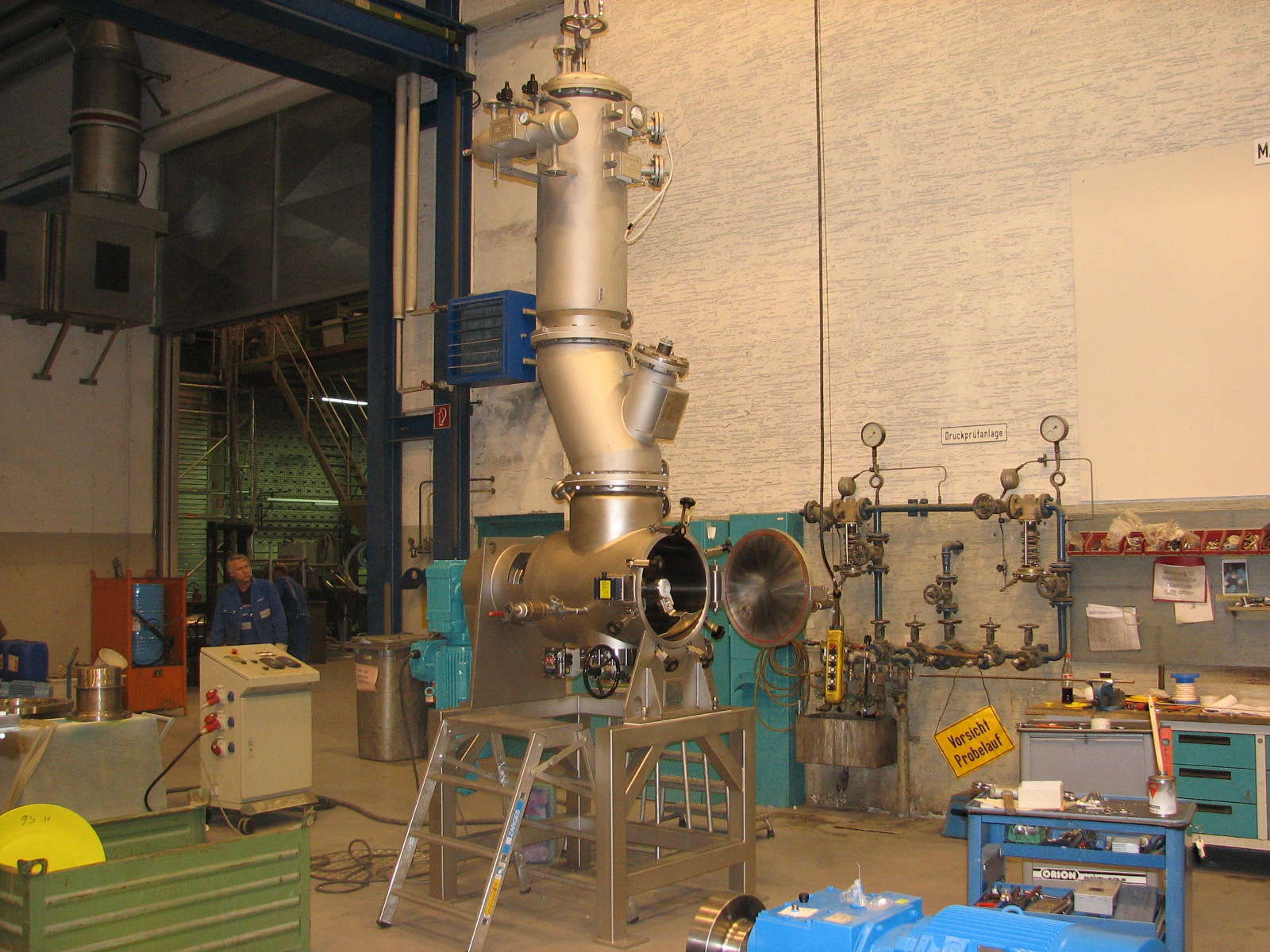

Year of construction:

• 2006

Machine No.:

• 15829

Material:

• Drum: inside surface polished acc. to RA < 0.8 µm, outside surface glass bead blasted

Description:

• Feeding inlet with butterfly valve for manual feeding
• Discharge with manually operated ball valve
• Filter DN 400 with cleaning

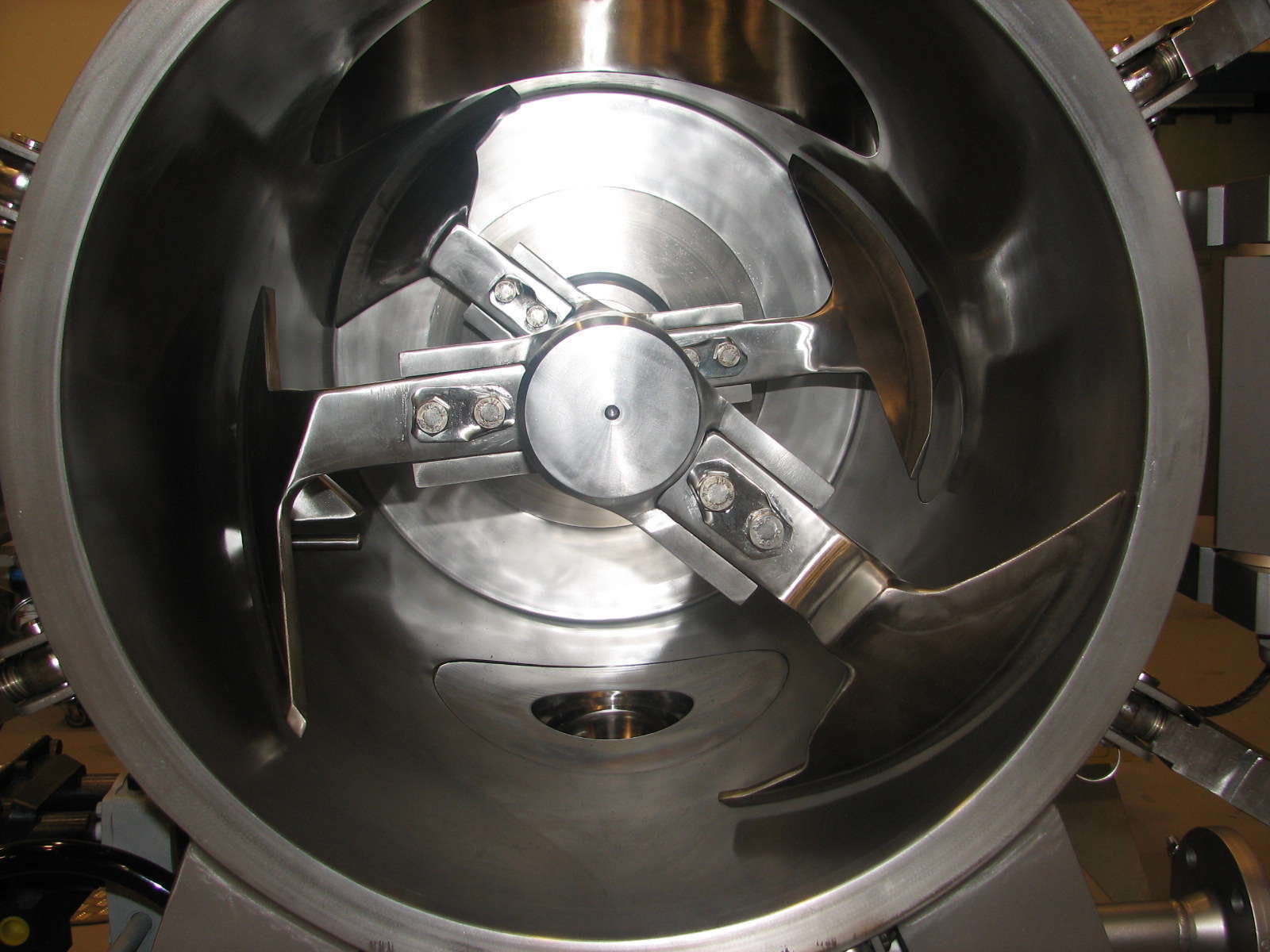

• Mixing shaft equipped with special Ploughshare® Shovels (Becker type) with hard metal welding
• Mixing drum with plug to be equipped with a chopper (chopper as option)
• Sealing of mixing shaft: stuffing box packing (mechanical face seal as option)

Power:

• Drive: 11 KW, 380V/60HZ
• 10-160 rpm
• with separately driven fan

Equipment:

• Heating/cooling jacket on the drum: 5 bar, -10/158°C
• Mixing drumr: -1/0 bar, -10/158°C
• Base frame

Remarks:

• The machine is dismounted and can be assembled individually.
