Reactor DRUVATHERM® : Gebrüder Lödige Maschinenbau GmbH

Rapid uniting of reacting agents
Prevention of local overconcentrations
No temperature gradients within the reaction field
Improved conversion of reactin agents, leading to higher yield with greater purity of the final product
Multi-phase process (reaction, heating, drying, granulation, cooling)

Maschine type

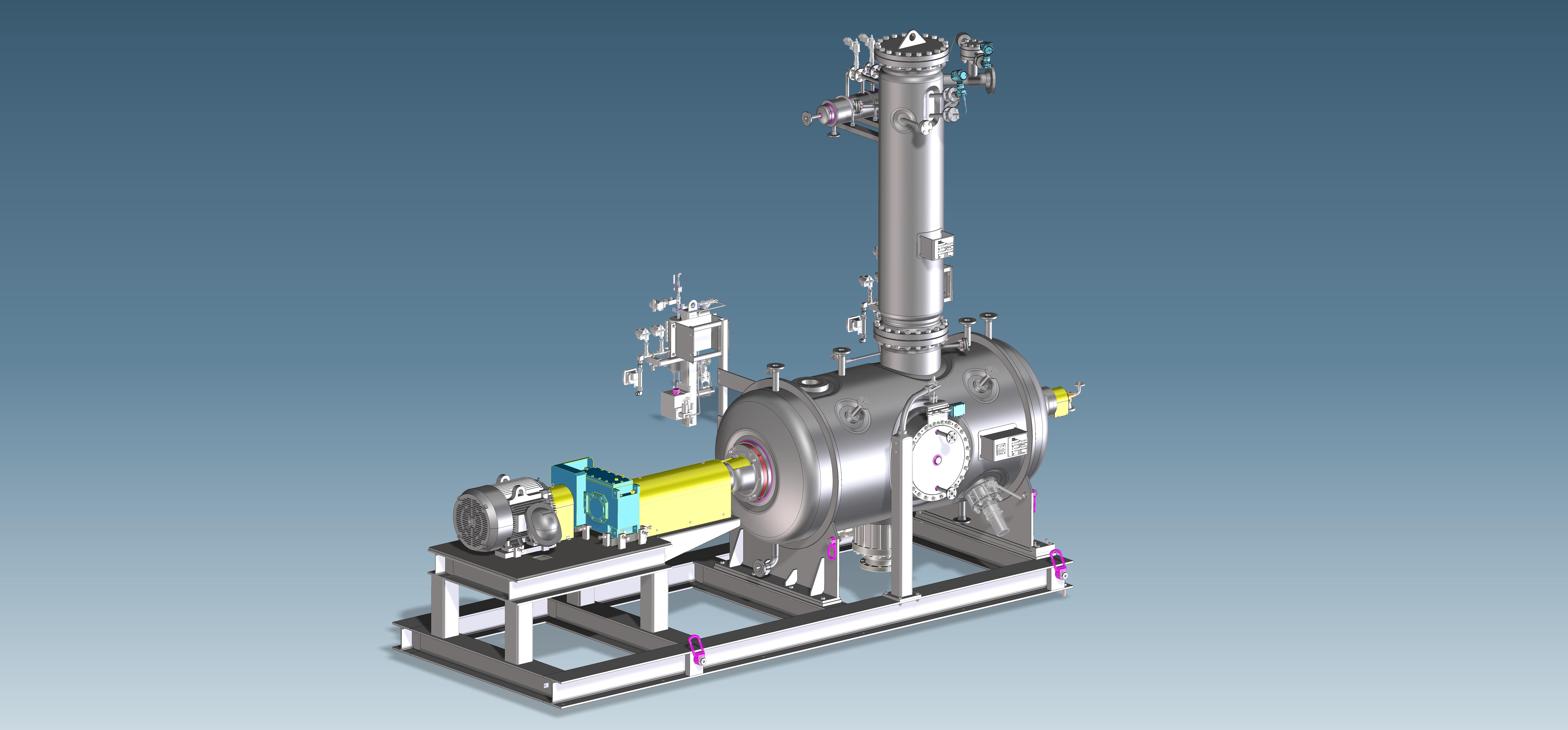

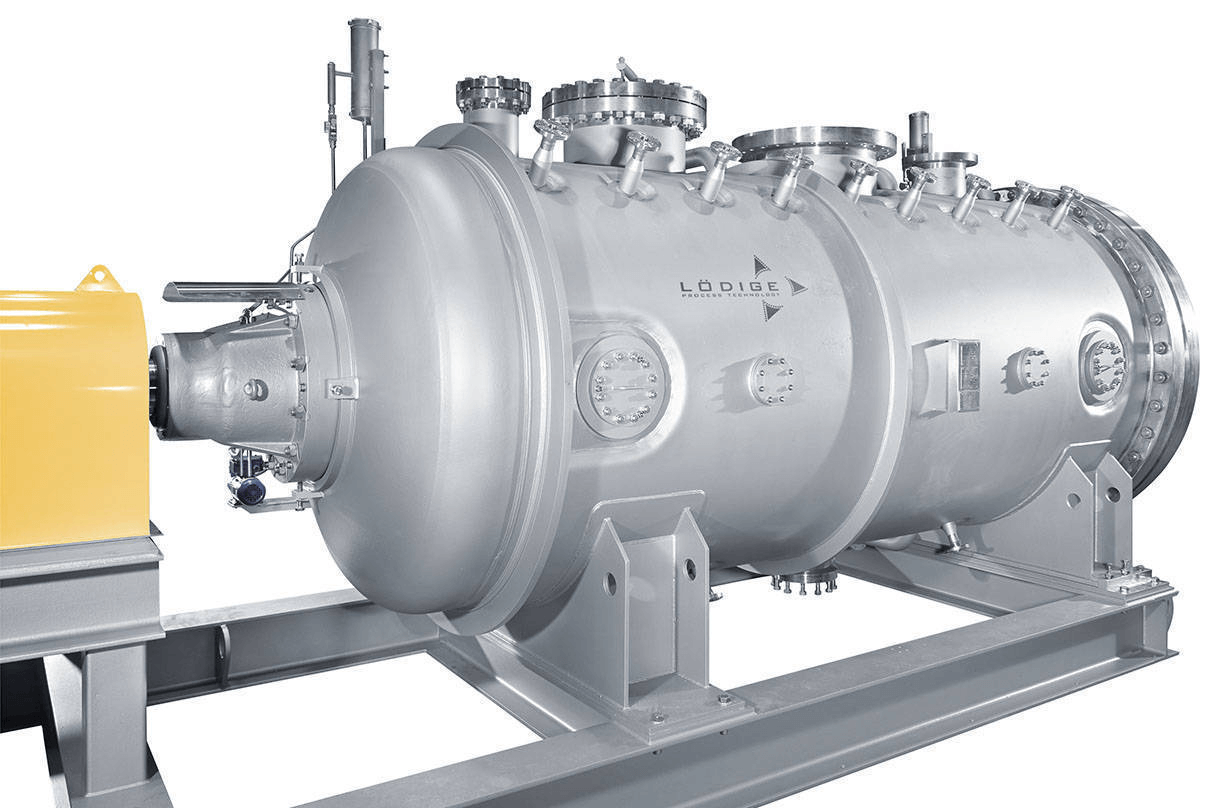

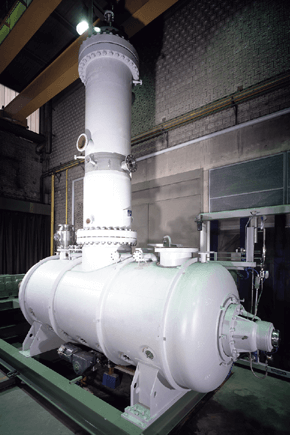

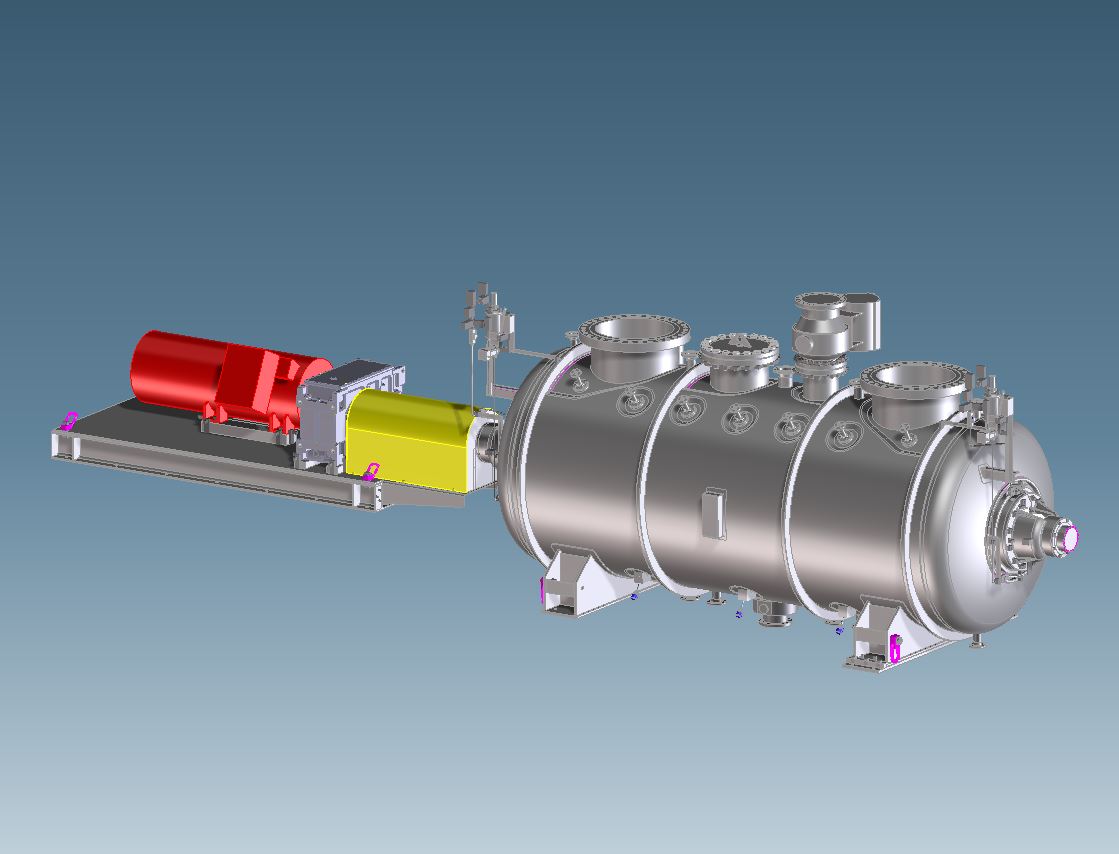

Lödige DRUVATHERM® reactors are batch, high-speed reactors. Rotating mixing elements adapted to the specific process, installed in a cylindrical drum equipped with a temperature control jacket, create a three-dimensional product movement. The resulting contact frequency of the reacting agents with each other leads to a more effective conversion with a higher yield.

Sizes

Do you have any question about the machine sizes? Please contact our sales department!

Standard version

The high-speed mixing elements ensure high contact frequency of the reacting agents with each other and intense contact of the reacting agents with the heated or cooled vessel wall. This makes reactions in homogeneous and heterogeneous phases possible in practically all combinations (solid/liquid/gaseous). The production consistency can be anywhere along the spectrum of liquid to pasty to lumpy to pourable. High-speed rotating choppers installed on the side of the machine drum perform additional mixing work to distribute the reacting agents.

Options

Variable speed due to hydrostatic drive unit or frequency control
Materials in contact with the product available as C-steel, all common austenitic steels, duplex steels, titanium, various nickel-based materials
Pressure ranges up to 50 bar
Temperature ranges up to 650 °C
Shaft sealing by means of double-acting mechanical seals
Delivery with peripheral machine line components up to system solution
Drum volumes in different sizes starting from 5 l
